Customize Crane

• Application
• Other, Power Plant, Heavy Industry, Construction Site

• Condition
• New

• Control Type
• Other, Cabin/Radio Remote/Push Button

• Crane Total Weight
• Approx. 40,000 kg (varies by configuration)

• Crane Traveling Speed
• Up to 40 m/min

• Crane Type
• Other Cranes, Overhead (Bridge) Crane

• Feature
• Other

• Lifting Capacity
• Up to 200 Tons

• Lifting Height
• 6 - 30 meters

• Lifting Time
• 15 - 60 seconds (depending on load)

• Loading Capacity
• 5 - 200 Tons

• Material
• Mild Steel/Alloy Steel

• Max Oil Flow of Hydraulic System
• 120 L/min

• Max Pressure of Hydraulic System
• 320 Bar

• Recommend Power
• 55 kW

• Slewing Angle
• 360 Continuous

• Span Length
• 10-35 meters

• Trolley Travel Speed
• Up to 20 m/min

• Working Presssure
• 320 Bar

• Application
• Other, Industrial, Construction, Warehousing

• Condition
• New

• Control Type
• Other, Remote, Pendant, Cabin

• Crane Total Weight
• 12,800 kg

• Crane Traveling Speed
• 20 m/min

• Crane Type
• Other Cranes, Double Girder Bridge Crane

• Feature
• Other

• Lifting Capacity
• 10 Tons

• Lifting Height
• 9 Meters

• Lifting Time
• 5 min (Full Height)

• Loading Capacity
• Upto 10 Tons

• Material
• Mild Steel

• Max Oil Flow of Hydraulic System
• 50 L/min

• Max Pressure of Hydraulic System
• 25 MPa

• Recommend Power
• 18.5 kW

• Slewing Angle
• 360

• Span Length
• 18 Meters

• Trolley Travel Speed
• 30 m/min

• Working Presssure
• 5 MPa

• Application
• Other, Waste-to-Energy Plants, Bulk Material Handling, Scrap Handling, Ports

• Condition
• New

• Control Type
• Other, Cabin Control / Remote Control

• Crane Total Weight
• Approx. 10-40 Tons (Depends on configuration)

• Crane Traveling Speed
• 20-40 m/min

• Crane Type
• Other Cranes, Overhead Grabbing Crane

• Feature
• Other

• Lifting Capacity
• 5-20 Tons (Customizable)

• Lifting Height
• 10-30 m

• Lifting Time
• Varies per load, typically 1-2 min per operation

• Loading Capacity
• 5-20 tons

• Material
• Heavy Duty Steel Structure

• Max Oil Flow of Hydraulic System
• 80~140 L/min

• Max Pressure of Hydraulic System
• 18-21 MPa

• Recommend Power
• 15-37 kW

• Slewing Angle
• 360 Continuous Rotation

• Span Length
• 10-35 m (Customizable)

• Trolley Travel Speed
• 10-15 m/min

• Working Presssure
• 18-21 MPa

• Application
• Other, Industrial, Warehouse, Steel Plants

• Condition
• New

• Control Type
• Other, Remote/ Pendant/ Cabin

• Crane Total Weight
• Approx. 2500 kg

• Crane Traveling Speed
• 20 m/min

• Crane Type

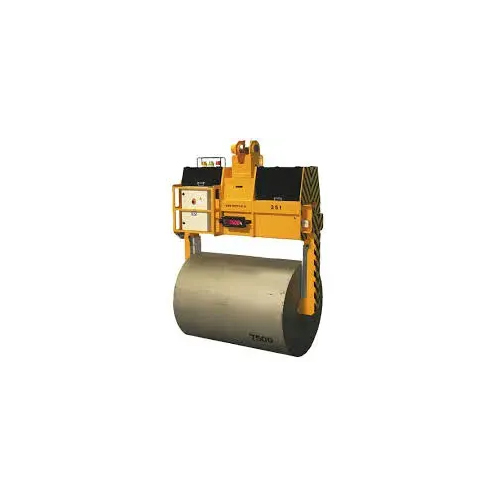

• Other Cranes, Coil Handling Crane

• Feature
• Other

• Lifting Capacity
• 10 Tons

• Lifting Height
• 8 m

• Lifting Time
• 60 Sec

• Loading Capacity
• Up to 10 Tons

• Material
• Alloy Steel

• Max Oil Flow of Hydraulic System
• 85 L/min

• Max Pressure of Hydraulic System
• 25 MPa

• Recommend Power
• 15 kW

• Slewing Angle
• 360 Degree

• Span Length
• 12 m

• Trolley Travel Speed
• 15 m/min

• Working Presssure
• 220-240 V

• Application
• Other, Steel plants, Foundries, Metallurgical applications

• Condition
• New

• Control Type
• Other, Cabin/Remote Control/Pendant Control

• Crane Total Weight
• Varies by model (typically 60-180 Tons)

• Crane Traveling Speed
• Up to 20 m/min

• Crane Type
• Other Cranes, Foundry Crane (Ladle Crane)

• Feature
• Other

• Lifting Capacity
• Up to 320 Tons

• Lifting Height
• 12-36 meters

• Lifting Time
• Customized; varies by operation (usually 2-6 min for full lift)

• Loading Capacity
• Up to 320 Tons

• Material
• High-strength structural steel

• Max Oil Flow of Hydraulic System
• Up to 300 L/min

• Max Pressure of Hydraulic System
• Up to 28 MPa

• Recommend Power
• 55 kW - 200 kW

• Slewing Angle
• 360 (optional, based on design)

• Span Length
• 10-35 meters

• Trolley Travel Speed
• Up to 30 m/min

• Working Presssure
• Hydraulic system up to 28 MPa

• Application
• Other, Hazardous/explosive environments, chemical plants, refineries, paint shops, gas plants

• Condition
• New

• Control Type
• Other, Pendant Control/Remote Control

• Crane Total Weight
• Depends on capacity and span (approx. 2.5-12 tons for typical configurations)

• Crane Traveling Speed
• 10-25 m/min (customizable)

• Crane Type
• Other Cranes, Single/Double Girder Overhead Crane

• Feature
• Other

• Lifting Capacity
• 1 Ton to 50 Ton (customizable)

• Lifting Height
• Up to 30 m (customizable)

• Lifting Time
• Depends on height, typically 2-8 min for full lift

• Loading Capacity
• 1 Ton to 50 Ton

• Material
• Mild Steel, Alloy Steel, Flameproof electrical components

• Max Oil Flow of Hydraulic System
• Not Applicable (Electric motor driven system)

• Recommend Power
• 3 kW to 20 kW depending on capacity

• Slewing Angle
• Not applicable (typically for overhead type cranes)

• Span Length
• 5 m to 30 m (customized on request)

• Trolley Travel Speed
• 5-20 m/min (customizable)

• Working Presssure
• Not Applicable (Electric driven)

• Application
• Other, Steel Plants, Foundries, Smelting Workshops

• Condition
• New

• Control Type
• Other, Cabin control, Optional remote/pendant control

• Crane Total Weight
• Varies with configuration, typically 60-300 Ton

• Crane Traveling Speed
• 10-30 m/min

• Crane Type
• Other Cranes, Hot Metal Handling Overhead Crane / Ladle Crane

• Feature
• Other

• Lifting Capacity
• 15-320 Ton

• Lifting Height
• 10-25 m (customizable)

• Lifting Time
• Standard cycle 2.5-6 minutes

• Loading Capacity
• 15-320 Ton

• Material
• Heavy-duty Alloy Steel

• Max Oil Flow of Hydraulic System
• As per specific model (typically 100-350 L/min)

• Max Pressure of Hydraulic System
• 18-22 MPa

• Recommend Power
• 30-200 kW depending on capacity

• Slewing Angle
• Up to 360 (model dependent)

• Span Length
• 10-35 m

• Trolley Travel Speed
• 6-20 m/min

• Working Presssure
• Standard 0.6-0.8 MPa (customizable)

• Application
• Other, Material handling in workshops, manufacturing, and warehouses

• Condition
• New

• Control Type
• Other, Pendant Control/Electric Remote

• Crane Total Weight
• Variable as per configuration and span (typically 500 kg to 2,000 kg)

• Crane Traveling Speed
• 10-20 m/min (customizable)

• Crane Type
• Other Cranes, Curved Beam Jib Crane (Wall or Pillar Mounted)

• Feature
• Other

• Lifting Capacity
• 500 kg - 2 Ton (varies as per model)

• Lifting Height
• 3 to 6 meters (custom as per requirement)

• Lifting Time
• Varies by capacity (30-90 seconds full lift)

• Loading Capacity
• Upto 2 Ton (customized)

• Material
• Mild Steel/Structural Steel

• Max Oil Flow of Hydraulic System
• 12-20 L/min (if hydraulic, otherwise not applicable)

• Max Pressure of Hydraulic System
• Up to 320 bar (if hydraulic, otherwise NA)

• Recommend Power
• 3 Phase, 415V, 50Hz

• Slewing Angle
• Up to 270-360 continuous

• Span Length
• 3-8 meters (customized as per site)

• Trolley Travel Speed
• Approximately 15 m/min

• Working Presssure
• Standard 320 bar (hydraulic, if applicable)

• Application
• Other, Steel plant, heavy manufacturing, rolling mills, foundries

• Condition
• New

• Control Type
• Other, Cabin control, pendant, or remote control

• Crane Total Weight
• Approx. 25,000-150,000 kg (as per capacity and configuration)

• Crane Traveling Speed
• 20-40 m/min

• Crane Type
• Other Cranes, Overhead bridge crane (EOT crane)

• Feature
• Other

• Lifting Capacity
• 20-200 tons (customizable)

• Lifting Height
• 6-40 meters (customizable)

• Lifting Time
• Varies based on capacity and height, typically 2-4 min to maximum height

• Loading Capacity
• 20-200 tons

• Material
• High-strength steel (EN 10025 or equivalent)

• Max Oil Flow of Hydraulic System
• 80-400 L/min (when equipped with hydraulic mechanisms)

• Max Pressure of Hydraulic System
• Up to 350 bar

• Recommend Power
• 50-200 kW

• Slewing Angle
• Not applicable for bridge cranes (360 for rotating types)

• Span Length
• 10-40 meters (customizable)

• Trolley Travel Speed
• 15-30 m/min

• Working Presssure
• Variable, typically 160-350 bar (depending on hydraulic system)
